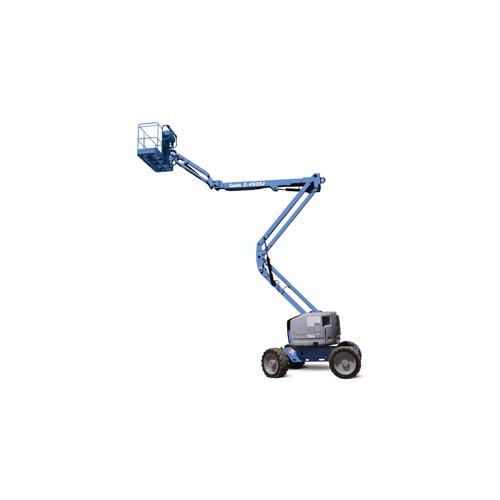

Z™-45/25 & Z™-45/25J

Working Height

51 ft 6 in (15.87 m)

Horizontal Reach

25 ft (7.62 m)

Up Over Clearance

23 ft 1 in (7.04 m)

Overview

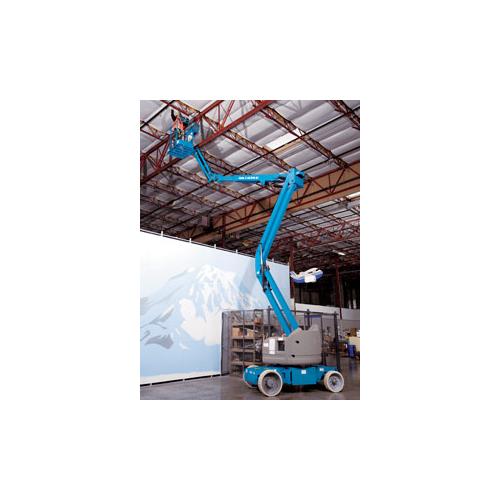

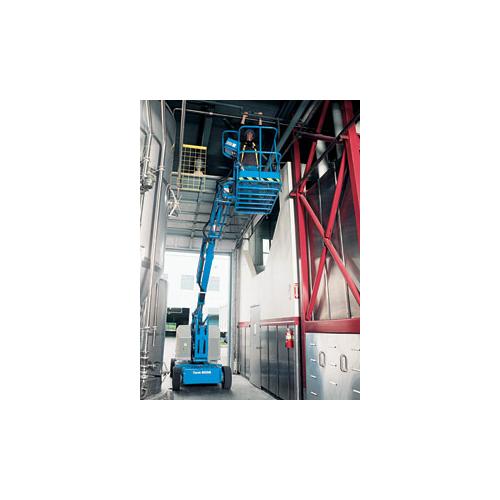

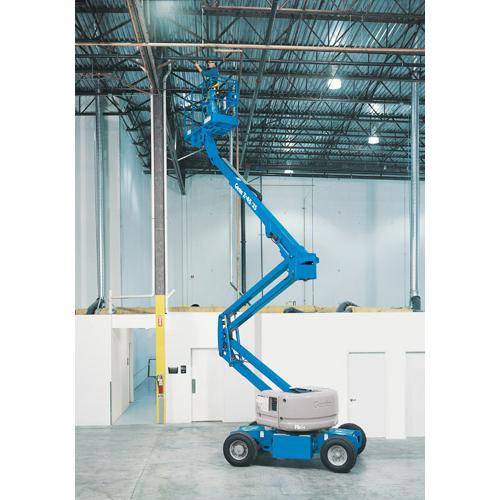

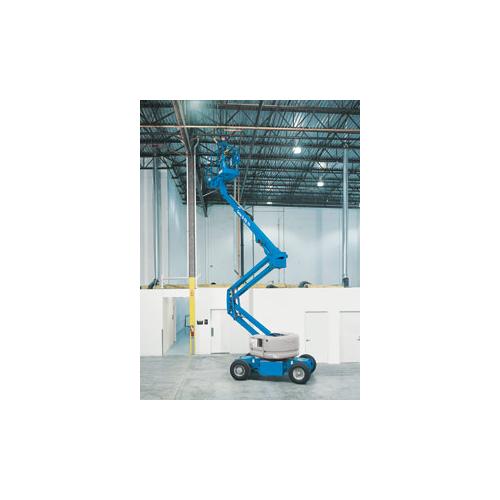

  • 48V DC machine with diesel powered generator acting as 100 amp battery charger make this boom ideal for indoor and outdoor applications
  • 6 ft (1.83 m) inside turning radius delivers excellent maneuverability
  • 2WD travels at 3 mph (4.8 km/h) with 30% gradeability
  • Ascent and descent along a vertical plane with or without boom retraction or extension
  • Large 6 ft (1.83 m) all-steel platform lifts up to 500 lb (227 kg)
  • Self-leveling platform features a 180° hydraulic rotation for Z-45/25 models and a 160° hydraulic rotation for Z-45/25J models
  • Drive enabled system informs operator when the drive and steer functions will move opposite controller movements
  • 6 ft (1.83 m) inside turning radius delivers excellent maneuverability
  • Self-leveling platform features 180° powered rotation for precise positioning and easy operation
