Z™-62/40

Working Height

67 ft 11 in (20.87 m)

Horizontal Reach

40 ft 11 in (12.47 m)

Up Over Clearance

26 ft 8 in (8.13 m)

Overview

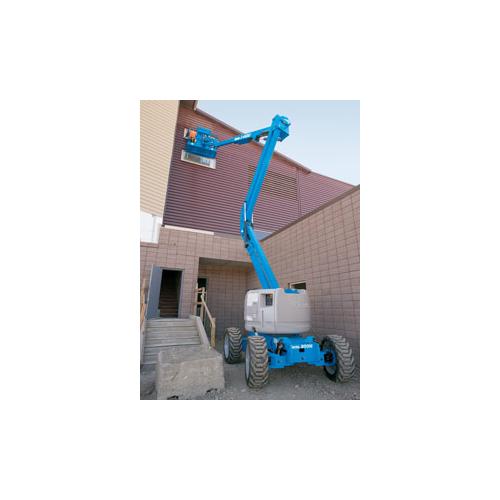

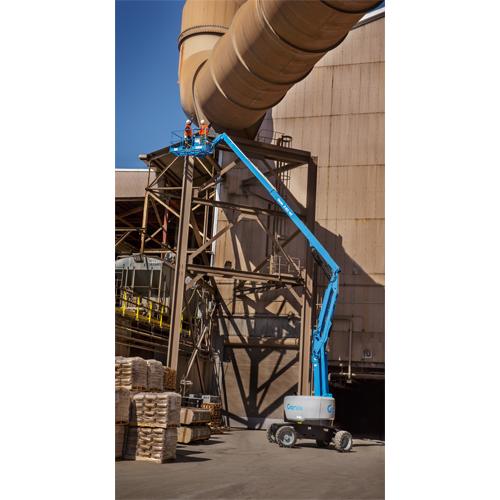

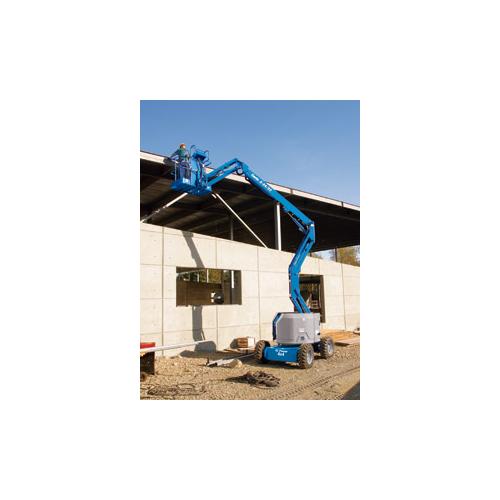

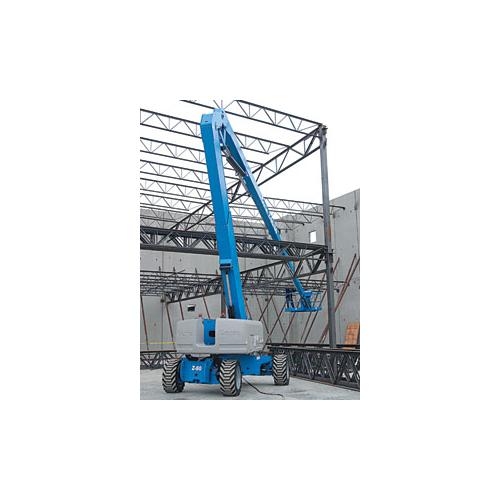

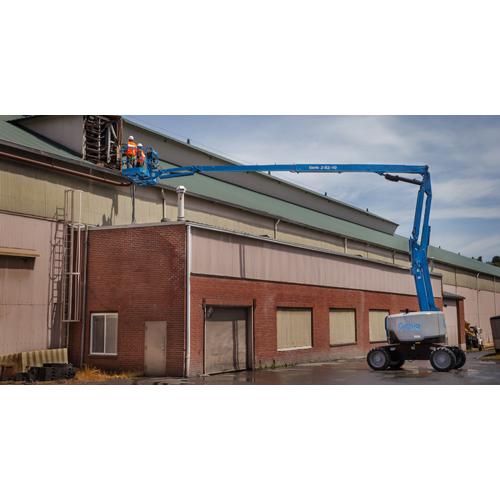

  • Articulating boom featuring a working height of 67 ft 11 in (20.87 m) and a horizontal reach of 40 ft 11 in (12.47 m)
  • The 5 ft (1.52 m) jib features a 135 degree range of motion to accurately position workers
  • The Genie Fast Mast ™ boom system allows operators to descend and retrieve materials and quickly return to working height
  • 4-wheel drive and full-time active oscillating axles provide traction for gradeability up to 45%
  • The new boom lift offers zero rear tail swing and minimal front turntable tail swing in the stowed position and has a below ground reach of  up to 5 ft (1.68 m)
  • The dual parallelogram lift linkage allows precise positioning of the platform for improved accuracy
  • The proportional control system allows for quick, precise access to work areas for increased productivity

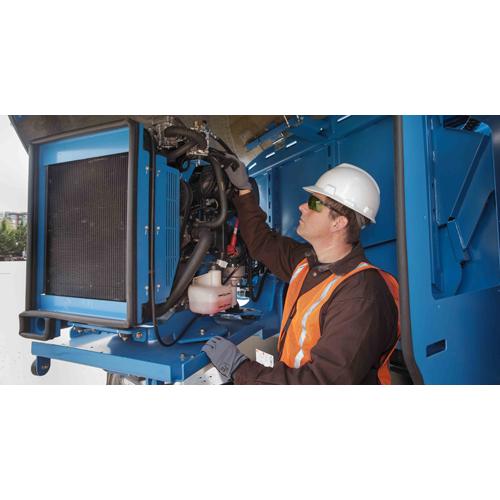

  • A swing out engine tray allows for easy access to either side of the engine assembly to quickly service the starter, exhaust or filters
  • Easy to transport at a compact size of 24 ft and 10.5 in (7.58 m) when stowed with the jib tucked
  • All of these features are available on a machine that weighs only 21,900 lbs (9,934 kg)
