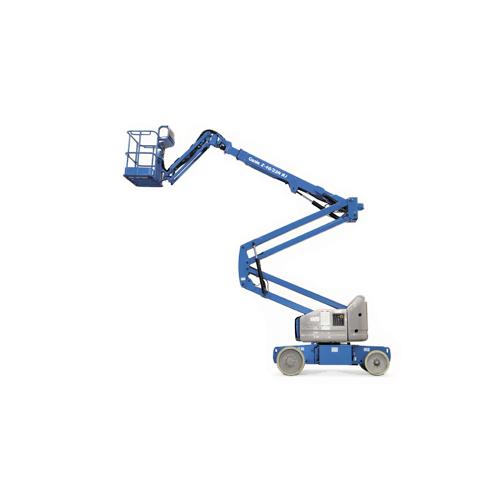

Z™-40/23 N & Z™-40/23 N RJ

Working Height

46 ft 5 in (14.32 m)

Horizontal Reach

22 ft 8 in (6.91 m)

Up Over Clearance

21 ft 3 in (6.48 m)

Overview

• Perfect to work in congested area with 4 ft 11 in (1.50 m) wide chassis and 2 ft. 8 in. (87 cm) turning radius
• Proportional lift and drive controls for precise adjustments in tight areas
• Maximum drive performance of 30% gradeability and 4.0 mph travel speed
• Motor controller reduces complexity and improves reliability of the drive system
• The 34V three-phase AC drive system contain fewer parts and simplifies maintenance
• Self-leveling platform features 180° powered rotation for precise positioning and easy operation
• The RJ model features 180° horizontal jib rotation
• Easy ascent and descent along a vertical plane without retracting or extending the boom
• Automatic hill braking and ramp braking
